Bauxite Rotary Kiln

bauxite rotary kiln

Production Capacity: 180-10,000t/d

Tolerance: 0.5mm

Specification: φ 2.5x40m- 6.0x95m

The rank of countries’ alumina bauxite storage is Australia, The Republic of Guinea, Jamaica, China, and India. Rich reserves provinces in China are Shanxi, Guizhou, Guangxi, and Henan provinces. Generally, alumina bauxite is used to produce alumina or aluminum.

Bauxite rotary kiln consists of a steel shell, tire, drive gear, kiln hood, kiln seal, and burner pipe. The kiln head guard and kiln tail return spoon are built-in block casting, so the bauxite rotary kiln has many advantages like easy installation, high heat, corrosion and wear resistance. Kiln head-cold air cover ventilating with cold air makes the kiln safer and more reliable by evenly cooling down the kiln head, barrel, and kiln mouth shield. More stable airflow profits from large volume kiln hood and split kiln door. Adopt the most advanced double seal technology in the world, which is a radical friction maze seal and scales seal. This kind of seal form has a simple structure and is easy to maintain. The combustion device adopts a swirling four-channel pulverized coal burner with a burner pipe.

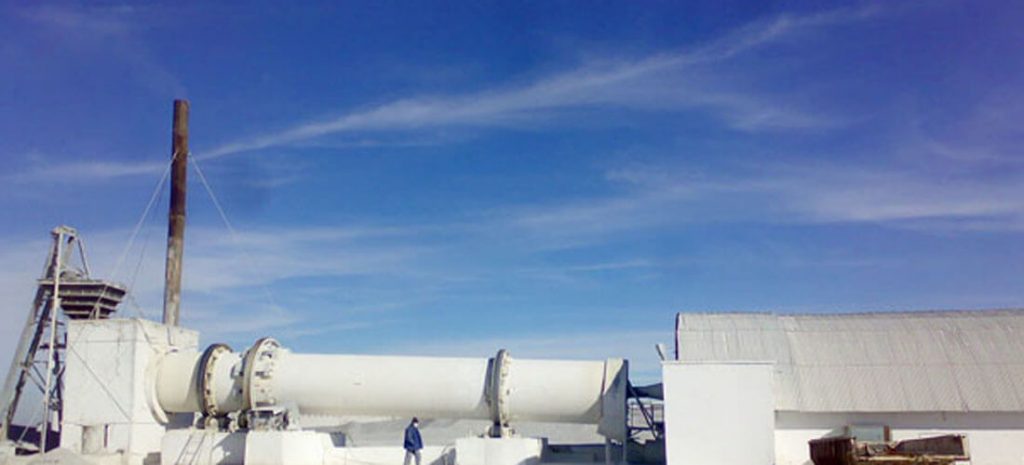

bauxite rotary kiln cases

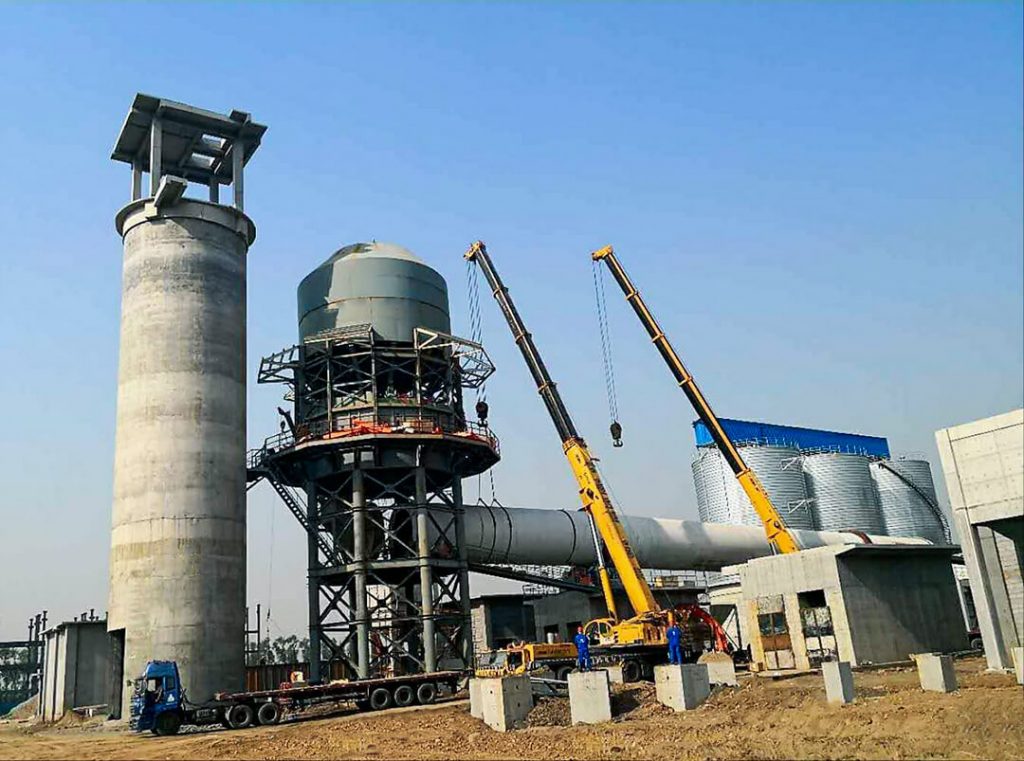

bauxite rotary kiln cases

Bauxite Rotary Kiln Feature

  • Low energy consumption. Compared to the common ball top converter, it’s per unit of coal consumption can reduce by 40%. It has better quality, well stability, and bigger market price advantages.
  • Easy operation. Its stable and reliable technology needs few professionals to operate.
  • Less pollution. It has a low amount of maintaining work and a high running rate.
  • Well, adaptability. It can use gas, pulverized coal, fuel oil, and other fuels.
  • Upgradeable to automated control. Automated control makes the system more intact and stable.

Kiln Parameters

Product Standard(m)Kiln SizeYield(t/d)Rotate Speed(r/min)Motor Power(kw)Gross Weight(t)Remarks
Diameter(m)Length(m)Inclination(%)t
Φ1.4×331.43330.9-1.30.39-3.9618.547.5
Φ1.6×361.63641.2-1.90.26-2.632252
Φ1.8×451.84541.9-2.40.16-1.623078.2
Φ3.0×483483.525.6-29.30.6-3.48100237Kiln outside decomposition
Φ3.0×603603.512.3-14.10.3-2100310
Φ3.2×503.250440.5-420.6-3125278Kiln outside decomposition

Bauxite Rotary Kiln Outstanding Advantages

  • The bauxite rotary kiln is easy to install. Bauxite rotary kiln’s kiln mouse guard and kiln tail feeding spoon use individual cast, which has high heat resistance, corrosion resistance, and wear resistance. The cold wind set in the kiln head transfers cooling air, which can evenly cool down the kiln head, cylinder, and kiln mouse guard.
  • Bauxite rotary kiln adopts large volume mode, which is opposite door kiln structure. It makes airflow more steady. The sealing mode of kiln head and kiln tail is dual sealing of radial friction maze and fish scale, whose structure is easy, maintenance is convenient.
  • The bauxite rotary kiln’s combustion device adopts a four-channel pulverized coal burner with a fuel injection ignition device.
    Bauxite rotary kiln has better superiority of market price with low energy consumption and good stability.
  • Bauxite rotary kiln has a simple structure, reasonable design, easy maintenance, less staff, and steady performance.
  • Bauxite rotary kiln has a character of less pollution, easy maintenance, and a high running ratio.
  • Bauxite rotary kiln can adopt too many fuels like gas, braise, and fuel oil. An automatic bauxite rotary kiln also exists.

Bauxite Rotary Kiln Debug Methods

How to deal with the heating problem of roller tile on bauxite rotary kiln:
The heating problem consists of heating thrust surface, heating roller tiles’ surface, and both of them. To highlight the adjustment effect, push forward a roller tile in one pair while pulling back the other, but it can’t suitable for the circumstance when the pair of them are both heatings. In case of the change of kiln centerline, you can adjust the wheel seat located diagonally. After the adjustment, inspect the gap between the thrust plate and roller tile and the temperature of the roller tiles.
