Bentonite Dryer

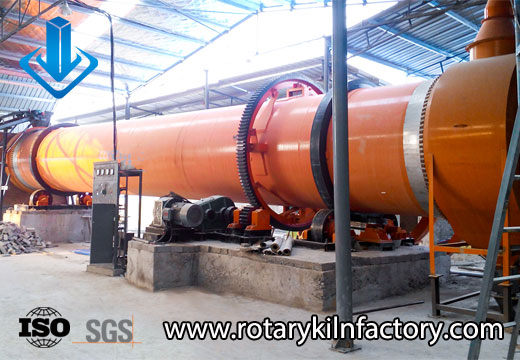

bentonite dryer

Bentonite Dryer Specification

Production capacity: 300-3000 t/d

Supported fuels: natural gas, fuel oil, coal gas, coal, etc.

Applicable materials: bentonite, kaolin, bauxite, diatomaceous earth, pottery clay, clay, yellow clay and other industrial clay.

Send your thoughts directly​

Bentonite is a significant non-metallic mineral, primarily composed of montmorillonite. Due to its exceptional water-absorbing properties, bentonite can even absorb water equivalent to its own weight. Consequently, naturally occurring bentonite typically contains high levels of moisture, which can impact its performance in various applications.

Through the drying treatment with bentonite drying equipment, the moisture content of bentonite can be reduced, thereby enhancing its stability and plasticity, making it more suitable for various industrial and agricultural applications. Bentonite exhibits excellent characteristics such as adsorption, gelling, and swelling. After bentonite drying, bentonite can be utilized as a binder, suspending agent, stabilizer, purifying and decolorizing agent, filling material, feed additive, catalyst, etc., and is widely employed in fields such as petroleum extraction, steel and iron casting, metallurgical pelletizing, chemical coatings, compound fertilizers, papermaking, water purification, pesticides, etc.

Bentonite Drying Equipment for Sale

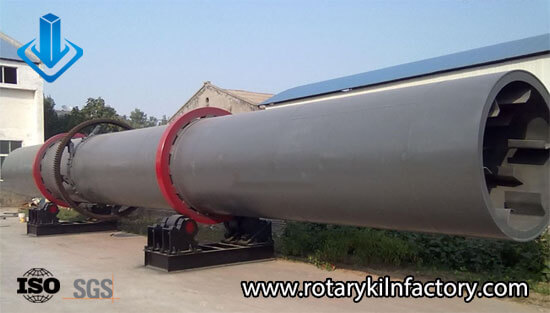

bentonite dryer

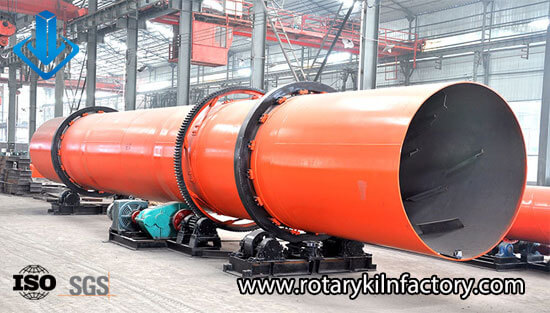

bentonite dryer

Based on the unique properties of bentonite, AGICO has designed and manufactured bentonite drying equipment for bentonite drying. The bentonite dryer is an indispensable drying device in the bentonite beneficiation process. AGICO engineers responsible for designing the bentonite dryer continuously upgrade and improve the dryer by analyzing its structure and its impact on the bentonite production, addressing issues such as increasing material filling rate and extending material residence time in the drum. The latest upgraded bentonite dryer features a new combination lifting device, eliminating the phenomenon of air ducts, thereby increasing the contact area between bentonite particles and hot air to facilitate efficient heat exchange and dehydration. This enhancement results in improved thermal utilization efficiency and production capacity. To meet the requirements for discharge particle size, they have added chains and short steel pipes, effectively promoting heat transfer, pulverization, and blocking of airflow. Additionally, plate chains and hanging chains have been installed inside the drum to not only enhance heat transfer but also prevent the adhesion of lifting plates and strengthen the material crushing function, making it difficult for larger agglomerates to form.

Bentonite
Bentonite
kaolin
Kaolin
bauxite
Bauxite
Diatomaceous earth
Diatomaceous earth

The bentonite dryer can be used for the rapid drying of various industrial clay materials such as bentonite, kaolin, and bauxite. It adopts a single-pass drying or triple-pass drum drying structure design and utilizes high-temperature hot air drying technology, resulting in the moisture content of the dried product being below 5%. Compared to other drying equipment, the bentonite dryer has a higher thermal utilization rate, large daily processing capacity, simple operation, low maintenance costs, and longer service life.

Bentonite Dryer Specification

Capacity(t/d)Initial moisture(%)Finished moisture(%)Total power(kw)Floor area(㎡)
30020-30≤513042×16
50020-30≤515046×16
80020-30≤520048×16
100020-30≤525051×16
130020-30≤528052×18
150020-30≤533055×18
180020-30≤538056×18
220020-30≤545058×18
270020-30≤556060×18
300020-30≤566060×18
Want More Details

Do you want to know more details about the bentonite rotary dryer? Try clicking the button to leave a message for our engineer now!

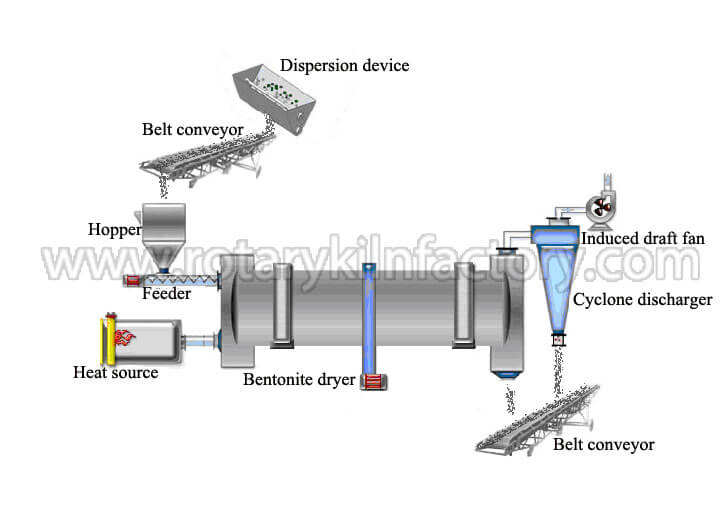

The Working Process of Bentonite Dryer

The Working Process of Bentonite Dryer

The bentonite is initially loaded into the feeder by a forklift, and then uniformly fed into the belt conveyor by the feeder. Subsequently, it enters the dryer through the guide pipe. The thermal energy generated by the combustion of the hot air furnace enters the main body and contacts the bentonite under the action of the induced draft fan. Inside the drying drum, the bentonite comes into full contact with the hot air under the flipping action of uniformly distributed scraping boards, promoting evaporation of moisture and accelerating the heat and mass transfer during drying. Our company’s bentonite dryer adopts a sealed structure, effectively reducing heat loss and improving thermal efficiency. After drying, the bentonite is discharged through the discharge hopper and transported to the designated location for storage. The top of the discharge hopper serves as the outlet for substances such as dust in the process, and after treatment by the dust removal system, it meets environmental emission requirements.

Drying Equipment Success Cases

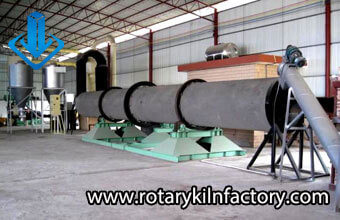

bentonite dryer case
1500 d/t bentonite dryer project in Guizhou China

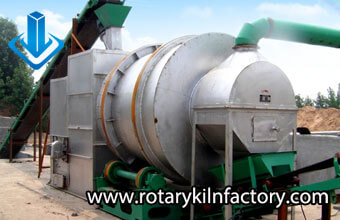

sand dryer case
15 t/h sand dryer project in Russia

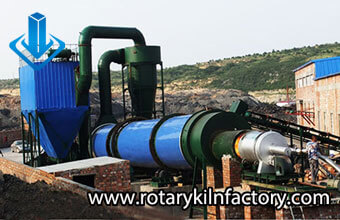

sawdust dryer
Sawdust dryer project in Canada
