Coal Slime Rotary Drum Dryer Machine

Coal Slime Dryer

Coal Slime Dryer Specification

Production capacity: 0.4-103 t/h

Supported fuels: steam waste heat, coal gas, natural gas, coal and other fuels.

Applicable materials: coal slime, raw coal, flotation clean coal, mixed clean coal, petroleum coke, clay and other materials.

Send your thoughts directly​

Coal slime is a coal product with a high moisture content, typically produced as a byproduct during coal production and processing. It mainly consists of coal chunks, fines, and water. With moisture content usually exceeding 30%, coal slime is challenging to utilize in industrial applications. However, through drying processes, its value can be enhanced, enabling applications such as power generation through combustion or brick production.

As a byproduct of coal processing, coal slurry typically has a high moisture content. Coal slime dryers(coal slime rotary drum dryer machines) play a vital role in the treatment of coal slime, effectively reducing its moisture content to enhance its value, promote resource utilization, and protect the environment.

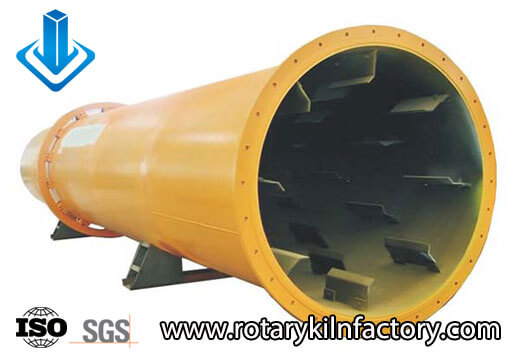

Coal Slime Rotary Drum Dryer Machine for Sale

A coal slime dryer is one of the key equipment used for processing coal slurry. It evaporates moisture from the coal slime using hot air or other heating methods, thereby reducing its moisture content. The dried coal slime can be utilized in various industrial fields such as coal slurry combustion for power generation, brick making, soil improvement, environmental remediation, and more.

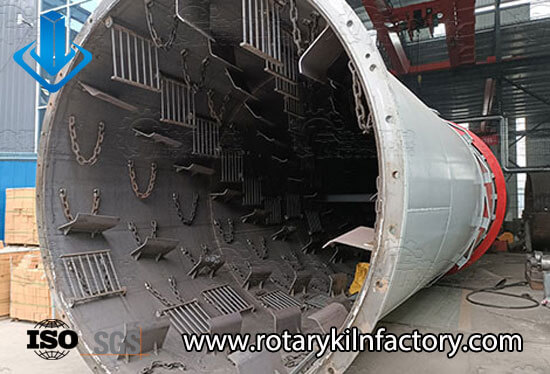

Inside of coal slime dryer

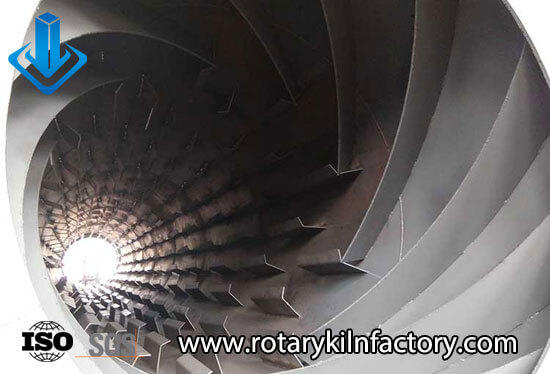

coal slime dryer

Featuring a disaggregation structure, movable grate-type wing plates, cleaning devices, and crushing impact dispersing devices, the coal slime rotary drum dryer machine can dry sticky materials that conventional dryers cannot handle. Specifically designed for cohesive filter cake-like materials, it is suitable for large-scale drying of coal slime, washed clean coal, municipal sludge, chloride choline, red mud, biowaste, and other cohesive filter cake materials.

Coal slime with a moisture content of 27%-30%, after drying in the coal slime rotary drum dryer machine, can achieve a final moisture content of 12%-16% and a granule size of approximately 5-20mm, forming loose spherical dried coal slime.

ModelVolume of the drum(m³)Capacity(t/h)Installation slope(%)Maximum intake temperature (℃)Main motor power(kw)Weight(t)
Φ0.6×82.20.4-0.63-5700-85033.2
Φ0.8×1051.3-1.83-5700-85044.4
Φ1.0×107.82.0-3.03-5700-8505.55.3
Φ1.2×1011.33.0-4.03-5700-8507.58.1
Φ1.2×1.213.53.5-5.03-5700-850119.1
Φ1.5×1221.25.5-7.53-5700-8501514.6
Φ1.5×1526.57.0-103-5700-8501516.5
Φ1.8×1230.58.0-113-5700-85018.521.9
Φ1.8×1845.812-163-5700-85018.526.6
Φ2.0×2062.816-233-5700-8502236.5
Φ2.2×2283.622-303-5700-8503043.9
Φ2.4×2299.526-353-5700-8504553.1
Φ2.5×25122.732-453-5700-8504562.6
Φ2.6×24127.433-463-5700-8504563.0
Φ2.8×28172.444-623-5700-8504585.0
Φ3.0×25176.645-643-5700-8507589.0
Φ3.2×2520150-723-5700-8509095.0
Φ3.4×2825465-923-5700-850110122.0
Φ3.6×2828573-1033-5700-850160129.0

Why Choose Quality Rotary Dryer Manufacturer AGICO

As a rotary dryer manufacturer with over 30+ years of experience in designing and producing dryers, AGICO has been renowned for its innovative technology and strict product quality. Over the years, our rotary drum dryer machines have been widely sold in more than 20 countries and regions worldwide, receiving consistent praise from customers. The coal slime dryer we produce is characterized by reliable equipment operation, high processing capacity, and the following key features:

The coal slime rotary drum dryer machine has a large processing capacity, suitable for large-scale production with a single machine capacity ranging from 0.4 to 103 t/h.

The coal slime dryer produced by AGICO has low operating costs, with a high volume heat transfer coefficient of 300-450 kcal/m3·℃·h, which is twice that of ordinary rotary dryers.

Through internally specially designed disaggregation mechanisms, active rake-type wing plates, cleaning devices, and crushing and disintegrating devices, the coal slime dryer automatically crushes, cleans, and distributes wet materials on the inner and outer walls of the drum during the drying process, solving the problem of adhesion of coal slime to the inner and outer walls of the drum and rake plates, ensuring that the inner and outer walls of the drying drum and the rake plates are smooth, and increasing the specific surface area of the materials by continuous crushing to improve drying intensity.

Different rake plates and chain structures are set in different drying sections along the axis of the drum to control the particle size of the dried products while solving the problem of wall sticking and achieving good drying, preventing the product from being too coarse or too fine.

The speed of the drum of the coal slime rotary drum dryer machine can be steplessly adjusted. By adjusting the speed of the drum and the inlet air temperature of the dryer, it can adapt to different forms of feed materials and meet different product moisture requirements.

The equipment operates reliably and has strong overload resistance. It adopts a swivel-type trunnion structure to reduce wear and power consumption. It also uses a dedicated stopper wheel structure to reduce the horizontal thrust caused by the inclined operation of the equipment.

Want More Details

Do you want to know more details about rotary drum dryer machine? Try clicking the button to leave a message for our engineer now!

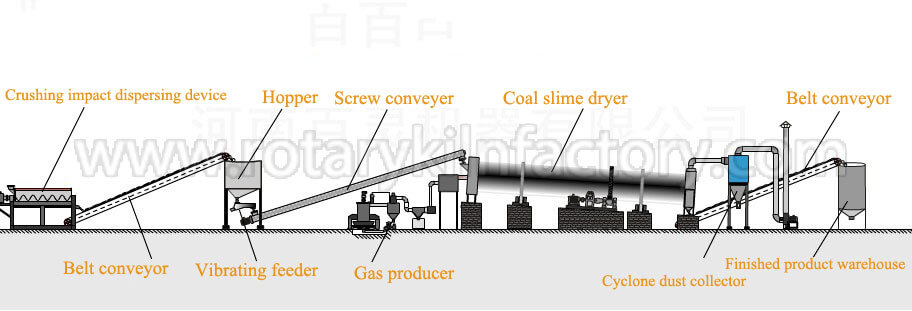

The Working Process of Coal Slime Rotary Drum Dryer Machine

The Working Process of Coal Slime Rotary Drum Dryer Machine
Coal Slime Rotary Drum Dryer Machine Working Process

The material is first loaded into the dispersing feeder by a loader, then transferred to the feeding belt conveyor by the coal slime dispersing feeder, and then enters the drum spiral propulsion device.

Next, the material is swiftly guided by the high-angle guiding plate to the inclined lifting area, where, under the rotation of the drum and the inclination of the drum body in the coal slime rotary drum dryer machine, it is lifted from the bottom to the top of the drum, forming a “curtain of material”. At this point, hot flue gas passes through the curtain of material, conducting and exchanging heat with the wet material, preheating and evaporating some of the moisture.

Subsequently, the wet material enters the medium-temperature drying stage of the coal slime rotary drum dryer machine, where most of the moisture is evaporated. The material and the flue gas continuously mix and exchange heat until reaching thermal equilibrium and meeting the moisture requirements, then discharged from the drying drum.

The exhaust gas, containing a large amount of water vapor and dust after heat exchange, first undergoes rough cleaning through a primary cyclone dust collector, then undergoes fine cleaning through a secondary bag filter or wet dust collector, and finally emits purified exhaust gas with a dust content controlled below 50 mg/m3, meeting environmental standards, completing the entire drying process.
