Crusher Rotor

crusher rotor

Crusher Rotor Specification

Product material: high manganese steel

Applicable models: hammer crusher, impact crusher

Specifications: Conventional models are available from stock, and special models are supplied according to drawings

Other accessories: lining plate, sieve plate, guard plate, blow bar

Send your thoughts directly​

Details of Crusher Rotor

The crusher rotor is the main rotating component that performs the crushing process in the machine. It consists of a central shaft with a number of hammer-shaped discs mounted on it, which are free to swing and rotate at high speeds. The material to be crushed is fed into the crushing chamber and impacted by the rapidly rotating hammers, which shatter and disintegrate it into smaller pieces. The design and construction of the crusher rotor can vary depending on the specific application and desired output size. Regular maintenance and inspection of the crusher rotor are important to ensure optimal performance and longevity of the crusher machine.

Why does the crusher rotor need regular maintenance and replacement

The crusher rotor is a wearing part, therefore, the crusher rotor of the crusher needs regular maintenance or replacement due to various reasons.

Details of Crusher Rotor

Firstly, the high-speed rotating hammers and the constant impact they make against the material being crushed can cause wear and tear on the crusher rotor. This can lead to the formation of cracks, deformation or other damage, which can reduce the efficiency and output of the crusher machine. Regular maintenance, such as cleaning and lubrication of the crusher rotor, can help to prevent such damage.

Secondly, the type and hardness of the material being crushed can also affect the lifespan of the crusher rotor. Some materials, such as minerals or ores, are more abrasive and can cause faster wear and tear on the crusher rotor. In such cases, the crusher rotor may need to be replaced more frequently to maintain optimal performance.

Finally, the crusher rotor is a critical component of the hammer mill crusher, and any malfunction or failure can cause the machine to stop working altogether. Therefore, it is important to monitor the crusher rotor’s condition regularly and replace or repair it as needed to ensure the safe and efficient operation of the crusher machine.

Crusher Rotor and Other Parts for Sale

AGICO can provide you with the hammer mill rotor and impact crusher rotor, as well as various crusher accessories such as crusher liners, crusher grates, crusher grate plates, crusher hammer heads, and more. Customers with specific needs are welcome to send us their crusher rotor drawings to our email at info@rotarykilnfactory.com, and we will provide customized services according to your requirements.

Hammer mill rotor

hammer mill rotor

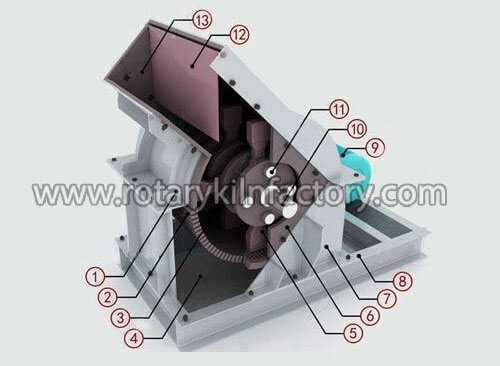

inside structure of hammer mill rotor

The hammer mill rotor rotates at a high speed, creating centrifugal force that causes the material to be thrown and dropped repeatedly. The material is subsequently crushed by the hammerheads’ impact and grinding. As a result, the hammer mill rotor is the main working part of the hammer crusher, and the effectiveness of production and the quality of the final product are directly influenced by the rotor’s quality.

A hammer crusher rotor is made up of a main shaft, a hammer frame, and hammerheads; the size of the hammer mill rotor varies based on the hammer crusher’s parameters. With the right design and material selection, a high-quality rotor may significantly increase crushing performance, lower energy consumption, and lengthen the life of the hammer crusher.

Impact crusher rotor

impact crusher rotor
inside structure of impact crusher rotor

The impact crusher rotor is an essential component of the impact crusher for crushing materials and a vulnerable part of the impact crusher. It plays an irreplaceable role in the impact-crushing process. Frequent problems with the impact crusher rotor can seriously affect the regular operation of the impact crusher, resulting in huge economic losses for the sand and gravel industry. Therefore, properly maintaining and repairing the rotor of the impact crusher can bring great benefits to both the impact crusher and the sand and gravel industry.

Other Crusher Parts for Sale

Other crusher parts for sale
Other crusher parts for sale

Crusher Rotor Delivery Site

Crusher rotor delivery site
Crusher rotor delivery site
Crusher rotor delivery site
