Gypsum Dryer

Gypsum Dryer Specification

Production capacity: 1.5-59 t/h

Supported fuels: steam, coal, natural gas

Applicable materials: desulfurization gypsum, phosphogypsum, titanium gypsum, fluorogypsum, salt gypsum, chemical gypsum and other materials.

Send your thoughts directly​

Gypsum, as a mineral, plays a crucial role in various industrial and construction applications. However, due to its high moisture content and significant viscosity, the utilization of gypsum has been restricted in the past, thus failing to fully showcase its potential value. With the introduction of gypsum dryers(gypsum rotary dryers), this situation has changed. These machines facilitate gypsum drying, filling the gap in the effective utilization of gypsum resources, thus enabling their full exploitation and preventing resource wastage.

Desulfurization gypsum
phosphogypsum
Phosphogypsum
Titanium gypsum
fluorogypsum
Fluorogypsum

The gypsum drying machine, specifically engineered to accommodate the characteristics of gypsum, efficiently dries gypsum with high moisture content, thereby enhancing its versatility and application value. Gypsum dryers can handle various materials such as desulfurization gypsum, phosphogypsum, titanium gypsum, fluorine gypsum, salt gypsum, and chemical gypsum. Post-drying, gypsum finds extensive utility not only in the construction and medical sectors but also proves pivotal across various other domains. This innovation not only holds positive implications for environmental protection but also delivers more significant economic benefits to users, thereby fostering sustainable industrial development. Therefore, the introduction of gypsum rotary dryer is crucial for enhancing the comprehensive utilization efficiency of gypsum resources and driving the development of related industries.

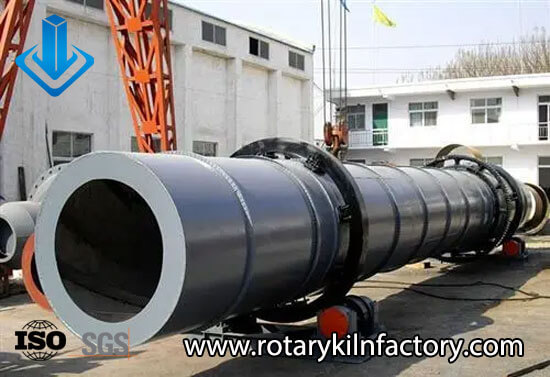

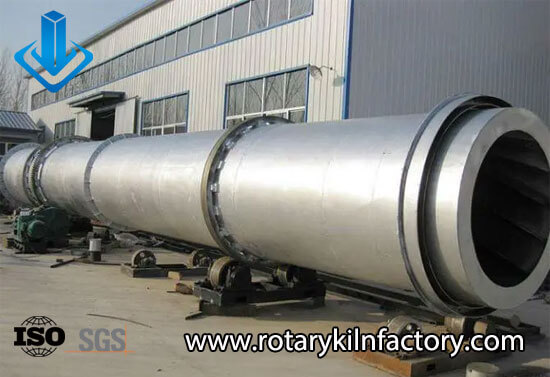

AGICO Gypsum Dryer

AGICO Gypsum Dryer
AGICO Gypsum Dryer

With the continuous development of comprehensive utilization of gypsum resources, gypsum drying has become an inevitable trend, and various calcination processes are concurrently evolving. Currently, major processing methods include direct heating gypsum rotary kiln, indirect heating gypsum rotary kiln, rapid calcination using airflow, fluidized bed calcination, and pan calcination. In response to this trend, AGICO has independently developed a set of gypsum drying unit equipment that boasts stability, high thermal efficiency, low energy consumption, energy conservation, environmental protection, and consistent product quality. These devices come in complete specifications, with an annual processing capacity ranging from 50,000 to 200,000 tons, flexibly adjustable according to customer needs. Whether for power plants, medical industries, construction sectors, or other comprehensive utilization of gypsum resources, our equipment can provide reliable solutions, contributing to the development of the environmental protection industry and the cause of energy conservation and emission reduction.

Want More Details

Do you want to know more details about the gypsum dying machine? Try clicking the button to leave a message for our engineer now!

SpecificationCapacity(t/h)Power(kw)Drum speed(r/min)Weight(t)
Ф0.6×8m1.5-2.8485.1
Ф0.8×10m347.56.9
Ф1.0×10m3.3-4.95.55.87.5
Ф1.2×10m4-67.54.813.5
Ф1.5×12m4-6104.818.9
Ф1.5×15m7-1218.54.821
Ф1.8×12m7-1218.54.122.83
Ф2.2×12m1218.53.237.6
Ф2.2×14m12223.240
Ф2.2×16m10-13303.245
Ф2.4×14m10-1430351
Ф2.4×18m2537354
Ф2.4×20m32-3637354.14
Ф3.0×20m40-50552.5978
Ф3.0×25m45-58752.59104.9
Gypsum dryer specification

Gypsum Drying Process in Gypsum Dryer

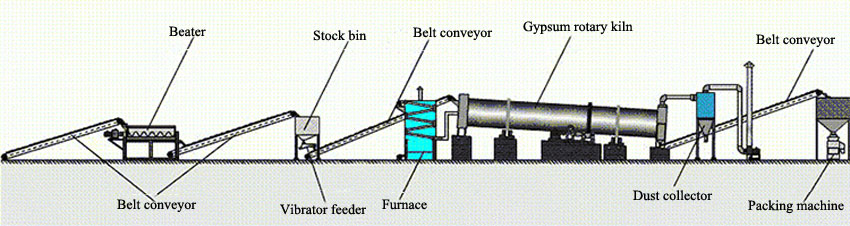

Gypsum Drying Machine Unit
Gypsum Drying Machine Unit

The processing of gypsum typically begins with loading it onto a feeder machine using a forklift, followed by uniform conveyance to a belt conveyor via the feeder machine. Subsequently, it is guided into the interior of a drying machine through a feed pipe. Under the combustion of the fuel in the thermal oil furnace, heat is transferred to the main unit via the thermal oil, where it undergoes thermal exchange with the gypsum. Within the drying drum, the gypsum is stirred by scraper blades, ensuring thorough contact with hot air, thus accelerating the drying process of gypsum and facilitating the evaporation and heat and mass transfer of moisture.

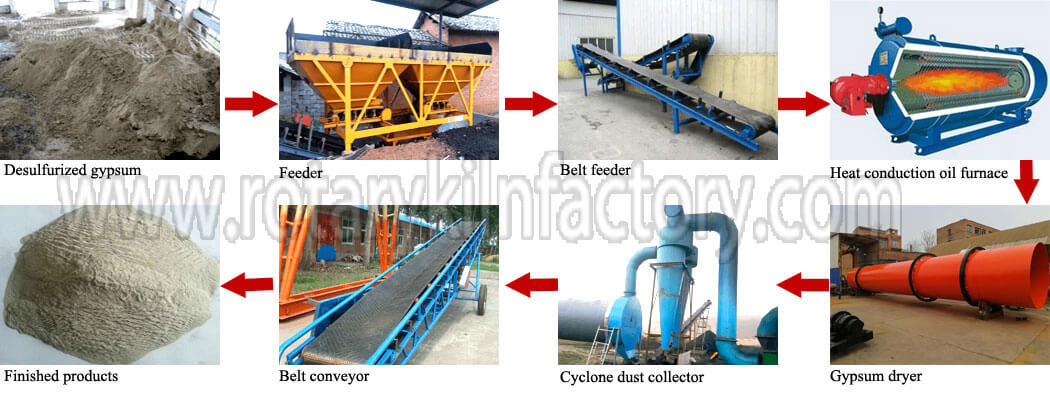

Gypsum drying process
Gypsum drying process

The gypsum dryer manufactured by AGICO adopts a sealed structure, effectively reducing heat loss and enhancing thermal efficiency. After drying, the gypsum is discharged through a discharge hopper and transported to a designated location for storage. The upper part of the discharge hopper is equipped with a dust removal system, which can effectively handle pollutants such as dust generated during the process, thereby achieving environmental protection goals. This comprehensive processing workflow ensures the efficient utilization of gypsum resources while also meeting environmental requirements, providing reliable support for the development of related industries.
