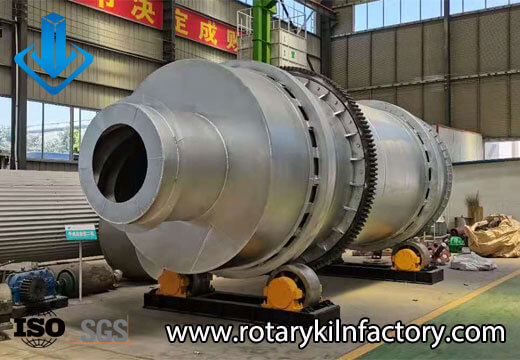

lake sand dryer

Lake Sand Dryer Specification

Production capacity: 1-80 t/h

Supported fuels: steam waste heat, natural gas, fuel oil, coal and other fuels.

Applicable materials: river sand, lake sand, slag, mineral powder, medicinal residue, brewer’s grains and other materials with high water content.

Send your thoughts directly​

Lake sand primarily originates from lakes and is formed by the erosion of rocks by water flow. Compared to river sand, lake sand is less affected by water flow, resulting in relatively more regular particle shapes. Similar to river sand, lake sand is commonly used in the preparation of construction materials such as concrete and road construction materials. Due to its more regular particle shape, lake sand finds application in some specialized material fields.

Lake sand, sourced from lakes, naturally contains a high moisture content. Therefore, before application, it requires drying treatment, which involves the use of a lake sand dryer for the drying process.

River sand
River sand
Quartz sand
Quartz sand
Water slag
Water slag
Yellow sand
Yellow sand

Lake Sand Dryer Design Features

AGICO CEMENT is dedicated to the research of lake sand dryers. The lake sand dryer design principle, as well as those for sea sand dryers, river sand dryers, and other industrial sand dryers, combines the inclined rotary drum dryer with the principle of airflow drying, resulting in a unique 3 pass rotary dryer. Through continuous technological improvement and upgrades, the latest generation of lake sand dryers can handle not only low-viscosity, high-moisture materials but also high-viscosity, high-moisture materials. The design of lake sand dryers addresses the drawbacks of bulky rotary drum dryers and large-volume airflow dryers, making them compact, highly efficient, lightweight, versatile, and flexible in temperature control.

Internal drying structure partition of industrial lake sand dryer

The drying process of lake sand in the dryer occurs in stages. Inside the lake sand dryer, there are three zones corresponding to the inner, middle, and outer layers of the dryer, each with different drying temperatures at different levels.

The inner drying area of the Husha dryer uses downstream high-temperature drying. Under high humidity conditions, after the inlet temperature is 430 ℃ (the highest can reach 600 ℃), heat and mass transfer can be carried out with the material in an instant. , remove most of the water, ensuring that the calorific value of the material does not change.

The middle layer drying area uses countercurrent drying at room temperature of 300°C. It is a high-yield water removal area. During the reverse drying process, the material is ensured to dry quickly.

The outer drying area of the Husha dryer is the normal drying area. The indoor temperature is 120 ℃ -210 ℃. The crushing equipment in the drum is used to repeatedly pull, hit, scatter, and dry downstream.

Model(m)Volume of equipment(m³)Cylinder processing thickness(mm)Power(kw)Capacity(t/h)Weight(t)
Ф1.6×248/641-25
Ф2×39.58/85.53-56.5
Ф2×4138/87.54-67.3
Ф2×5168/85.5×25-78.3
Ф2×6198/85.5×27-99.8
Ф2.5×42010/105.5×28-1211.5
Ф2.5×52510/105.5X410-1414.5
Ф2.5×63010/105.5X413-1817.5
Ф2.8×64010/145.5X416-2627
Ф2.8×7.55010/145.5X420-3232
Ф3×65512/147.5×430-3534.5
Ф3×86512/147.5×435-4041.5
Ф3.2×67014/1611×440-5046.5
Ф3.2×89014/1611×450-6049.5
Ф3.6×811516/1615×460-7053.5
Ф3.6×1013516/1615×470-8057.5
Want More Details

Do you want to know more details about the lake sand dryer? Try clicking the button to leave a message for our engineer now!

Why Choose AGICO Lake Sand Dryer

Customizable support:

The lake sand dryer can be customized in terms of output and specifications according to customer needs. Production plans and equipment configurations are tailored to customer requirements, saving money while better meeting user needs.

PLC Intelligent control:

The lake sand drying system adopts a PLC intelligent control system. The entire process of lake sand drying requires only one-button operation, saving customers excessive labor costs.

Low-carbon production:

The lake sand drying production line is equipped with a multi-stage dust removal system, ensuring emissions meet environmental standards and can satisfy the environmental requirements of most cities.

Responsible for installation and commissioning:

We will assign technical personnel to the customer’s factory or provide online guidance for equipment installation and commissioning. Any questions during the installation process will be answered 24/7. We are also responsible for providing technical training to the customer’s team.
