River Sand Dryer

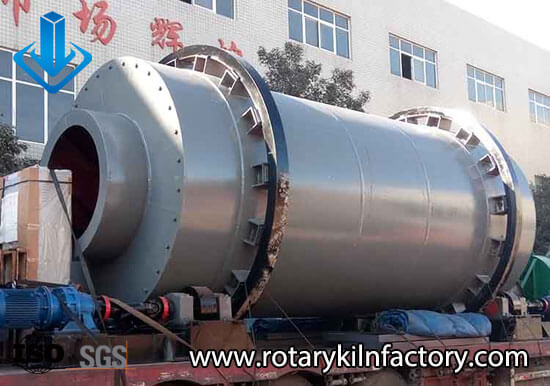

river sand dryer

River Sand Dryer Specification

Production capacity: 1-80 t/h

Supported fuels: coal, oil, gas and other fuels.

Applicable materials: river sand, sea sand, yellow sand, artificial sand, slag, cinder and other granular materials or materials with high water content.

Send your thoughts directly​

River sand dryer is a kind of sand dryer. River sand is a construction material primarily formed by the erosion and abrasion of river water, sourced from natural stones in riverbeds. It typically features a smooth surface with a considerable amount of impurities, yet its particles are round and relatively clean, exhibiting hues of gray-white or gray-yellow. The composition of river sand is intricate, comprising fine sand, medium-coarse sand, coarse sand, as well as sand and gravel. In the construction industry, river sand has extensive applications, commonly used in preparing concrete, cementitious materials, road-building materials, and artificial marble. Additionally, river sand can also serve as an additive in areas such as casting, metallurgy, and heat treatment to enhance material wear resistance and high-temperature durability.

However, despite the widespread applications of river sand in various fields, its often high moisture content necessitates processing with a river sand dryer. River sand drying reduces the moisture content effectively, enhancing its quality and usability, thus meeting the demands of the construction and industrial sectors for raw materials.

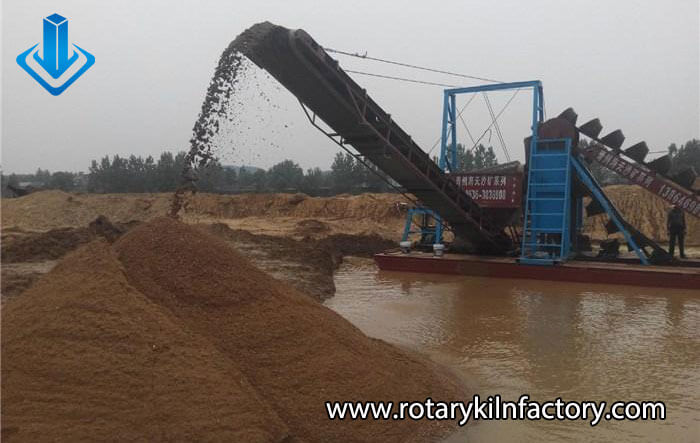

River sand collection site
River sand collection site

River Sand Dryer for Sale

The river sand dryer is based on the technology foundation of AGICO’s triple pass rotary dryer and is the third generation of three-cylinder dryers developed with European technology. This river sand rotary dryer consists of three concentric cylinders of different diameters, nested and combined according to specific mathematical relationships and structural forms. Guided by the principle of thermal power, the cylinder is equipped with lifting boards and guiding boards at different angles and intervals, ensuring that the dried materials move in a spiral manner inside the cylinder. With adequate residence time and sufficient dispersion, they undergo thorough heat exchange with the hot air from the combustion chamber, eliminating drawbacks such as small heat exchange area and low evaporation intensity per unit volume found in conventional drying equipment.

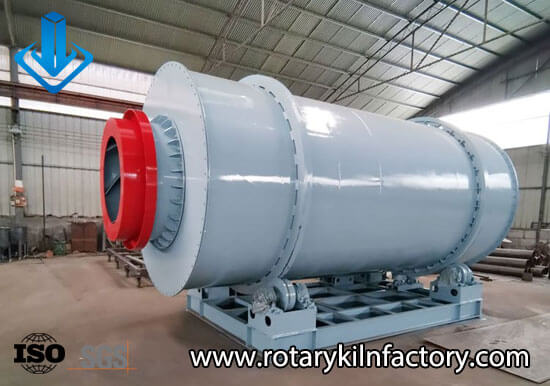

river sand dryer

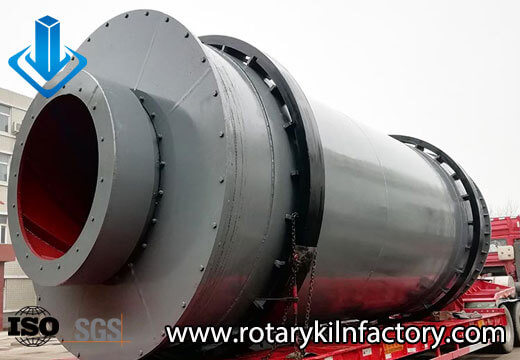

river sand dryer

The unique triple-cylinder structure of the river sand dryer forms its own insulation system, with the inner and middle cylinders surrounded by the outer cylinder. The heat emitted from the surfaces of the inner and middle cylinders contributes to the heat exchange within the outer cylinder’s materials. Additionally, as the outer cylinder is positioned at the low-temperature end of the hot air flow, it significantly reduces the heat dissipation area and thermal energy loss of the cylinder.

The energy-saving river rotary sand dryer fully utilizes residual heat, reducing heat dissipation loss and increasing heat exchange area, thereby significantly improving the unit volume evaporation intensity of the dryer. This effectively enhances the thermal energy utilization rate and reduces energy consumption. Due to its unique structure, the length of the cylinder of the river sand rotary dryer is only one-third of that of a single-cylinder dryer, resulting in approximately 65% savings in basic area, thus reducing initial investment costs.

Want More Details

Do you want to know more details about the river sand dryer? Try clicking the button to leave a message for our engineer now!

Additionally, the river sand dryer utilizes friction drive between the supporting wheel and the belt, resulting in low transmission power and minimal noise during operation. Its sealing system adopts micro-contact technology for enhanced sealing effectiveness, reducing dust pollution. The rotary sand dryer is compatible with various fuels such as coal, oil, and gas, capable of drying materials in block, granular, or powder forms. It is an environmentally friendly and energy-efficient product, serving as a substitute for traditional drying equipment.

River Sand Rotary Dryer Specifications

Model(m)Volume of equipment(m³)Cylinder processing thickness(mm)Power(kw)Capacity(t/h)Weight(t)
Ф1.6×248/641-25
Ф2×39.58/85.53-56.5
Ф2×4138/87.54-67.3
Ф2×5168/85.5×25-78.3
Ф2×6198/85.5×27-99.8
Ф2.5×42010/105.5×28-1211.5
Ф2.5×52510/105.5X410-1414.5
Ф2.5×63010/105.5X413-1817.5
Ф2.8×64010/145.5X416-2627
Ф2.8×7.55010/145.5X420-3232
Ф3×65512/147.5×430-3534.5
Ф3×86512/147.5×435-4041.5
Ф3.2×67014/1611×440-5046.5
Ф3.2×89014/1611×450-6049.5
Ф3.6×811516/1615×460-7053.5
Ф3.6×1013516/1615×470-8057.5

Technical Advantages of River Sand Dryer

The investment required for the river sand dryer is only one-third of other similar products.

The final moisture content of the material is guaranteed to be below 0.5%, making it the preferred choice for production lines of sand, dry-mixed mortar, and slag powder.

The self-insulating thermal efficiency of the cylinder reaches over 70% (traditional single-cylinder dryers have a thermal efficiency of only 35%), increasing thermal efficiency by 35%.

The fuel can adapt to coal, oil, and gas. It can dry granular materials with a moisture content of up to 20mm.

It reduces the footprint by approximately 30% compared to single-pass dryers, reduces civil construction investment by around 65%, and decreases electricity consumption by 60%.

The final moisture content target can be easily adjusted according to user requirements.

The outlet temperature is low, resulting in prolonged use of the dust removal equipment.

There is no need for large and small gear transmission, instead, it adopts a supporting wheel drive system.
