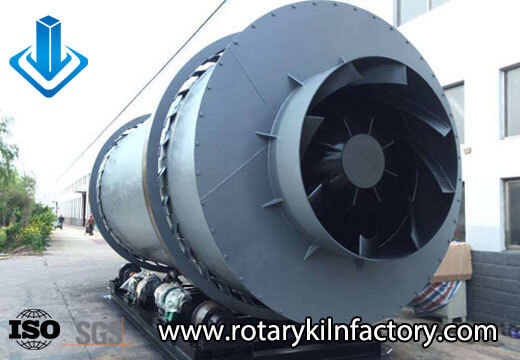

Triple Pass Rotary Drum Dryer

triple pass rotary drum dryer

Triple Pass Rotary Drum Dryer Specification

Production capacity: 2.6-115 t/h

Supported fuels: steam waste heat, natural gas, fuel oil, coal and other fuels.

Applicable materials: high moisture materials such as yellow sand, slag, clay, gypsum, biomass, etc.

Send your thoughts directly​

Triple pass rotary drum dryer, also known as three drum dryer, differs in structure from a single pass drum dryer. It consists of three drums of varying diameters nested together, forming three drying chambers: an inner layer, a middle layer, and an outer layer. Unlike single pass drum dryers, triple pass dryers do not require to be set on a sloped base or rely on gravity to move materials. Instead, they rely on pneumatic conveying within the drums to loosen materials to specified positions. The notable advantages of a triple pass drum dryer include shorter drum length, smaller size, lighter weight, space-saving, flexible temperature control, and versatility, making it suitable for drying various high-moisture materials such as sand, biomass, and more.

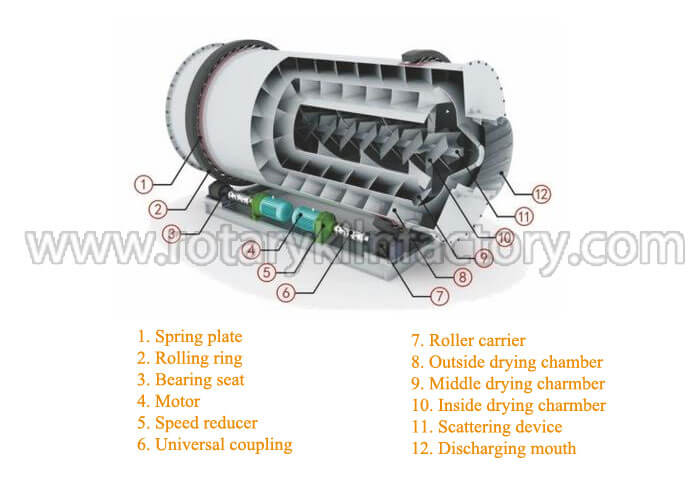

The Structural Characteristics of Triple Pass Drum Dryer

The Structural Characteristics of Triple Pass Drum Dryer
The Structural Characteristics of Triple Pass Drum Dryer

A triple pass rotary dryer is a modification of the single pass dryer, where instead of a single drum, three drums are nested together to reduce the overall size of the dryer. During operation, the material and hot airflow sequentially pass through the inner to outer drums. Then, they undergo a zigzag flow pattern within the dryer body, effectively utilizing heat energy to dry the material before being discharged.

The drum of the triple pass dryer is composed of three coaxially arranged inner, middle, and outer drums, making full use of the space within the drum cross-section. Overall, the length of the drum body is approximately 30-35% of that of a single-pass drum dryer, significantly reducing the footprint and factory building area.

The support device of the three drum dryer combines the wheel belt on the outer drum with the support roller, driven directly by the motor. The rotation of the drum is achieved through friction between the support roller and the wheel belt. The overall structure is compact, rational, and simple, featuring an axially split design for easy inspection and replacement of worn parts, secured with bolt connections.

The triple pass rotary drum dryer is capable of drying block materials, granular materials, and powdery materials below 20-40mm. The drum is made of wear-resistant manganese plate, which is 3-4 times more durable than ordinary steel plate, effectively extending the service life of the dryer.

ModelVolume of the drum(m3)Drum speed(r/min)Motor power(kw)Maximum inlet temperature(℃)Weight(t)Capacity(t/h) Yellow sandCapacity(t/h) Slag
Φ1.5×35.38-103×2700-7506.04.5-7.52.6-4.0
Φ2.0×412.68-105.5×2700-7507.410.6-17.86.2-9.5
Φ2.5×524.58-107.5×2700-75015.320.6-34.712-18.4
Φ2.8×636.98-107.5×4700-7503231.1-52.218.1-27.7
Φ3.2×864.38-1015×4700-7504354.1-9131.6-48.3
Φ3.6×1081.48-1022×4700-7504868.5-11540-61.2

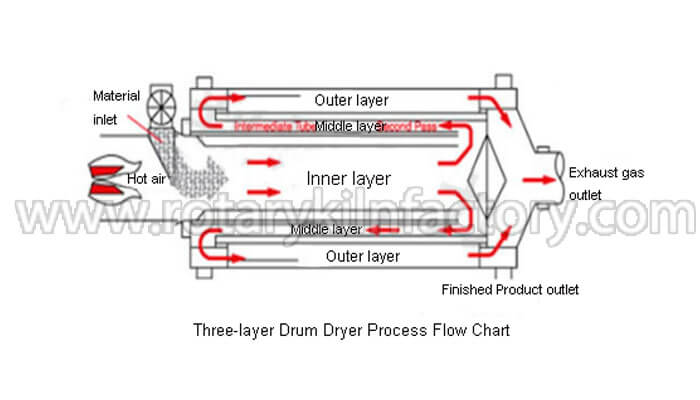

The Workflow of Triple Pass Rotary Drum Dryer

The Workflow of Triple Pass Rotary Drum Dryer

The material first enters the inner layer of the triple pass drum dryer through the feeding device. In the inner layer, the material is continuously lifted and scattered by the lifting boards, spiraling forward to facilitate heat exchange. Subsequently, the material enters the middle layer for countercurrent drying. It is repeatedly lifted and gradually moved forward in a two-step-forward-one-step manner. In the middle layer, the material fully absorbs the heat released by the inner drum and middle drum, while also extending the drying time to achieve the desired dryness. Then, the material falls from one end of the middle layer into the outer layer, where it moves in a rectangular multi-circuit manner to achieve drying. The dried material is swiftly discharged from the drum under the action of hot air, while the wet material, due to its weight, cannot move quickly and undergoes thorough drying within the rectangular lifting boards of the outer layer, thus achieving the purpose of drying.

Want More Details

Do you want to know more details about the gypsum dying machine? Try clicking the button to leave a message for our engineer now!

How to Choose Type of Dryer, Single Pass Dryer vs. Triple Pass Dryer?

Both triple pass rotary drum dryers and single pass dryers are rotary drying equipment used in various industries for drying processes, aiming to reduce the moisture content of materials. Below, we will compare the similarities and differences between the two in terms of their structure, operation, material retention time, as well as price, and applicable materials.

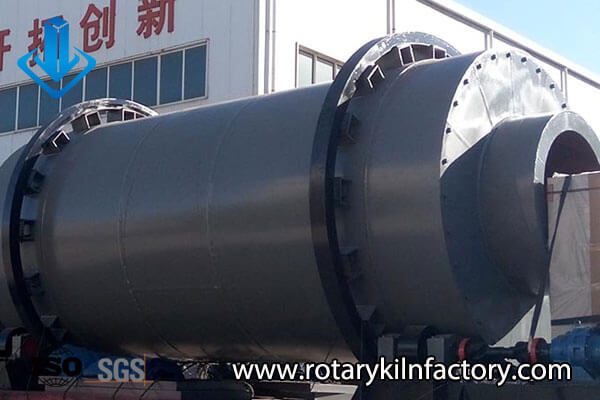

Triple Pass Dryer
Triple Pass Dryer

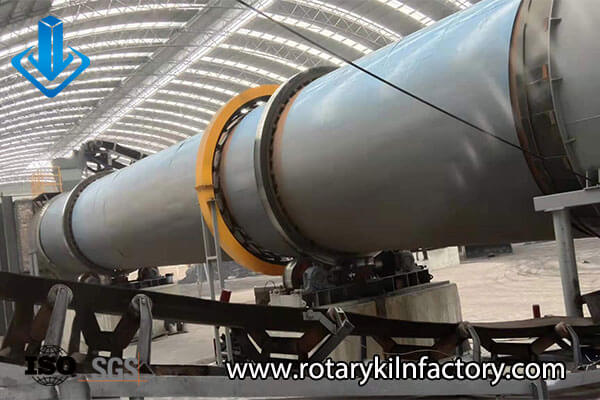

Single Pass Dryer
Single Pass Dryer

Triple pass rotary dryer

  • Structure: The drum of the triple pass drum dryer is composed of three lightweight drums arranged in a sleeve shape.
  • Operation method: The triple pass drum dryer uses pneumatic force to transport materials out of the drum.
  • Stay time: The triple pass drum dryer achieves a longer stay time through multi-layer cylinder conveying.
  • Floor area: The triple pass drum dryer consists of three cylinders, which are small in size, light in weight, and have a small floor area.
  • Operation method: The triple pass drum dryer uses pneumatic force to transport materials out of the drum.
  • Applicable material type: Suitable for high humidity materials such as sand, biomass, clay, etc.
  • Investment cost: The investment cost is relatively low.

Single pass rotary dryer

Structure: The single pass rotary dryer consists of a single heavy-duty drum.

  • Structure: The single pass rotary dryer consists of a single heavy-duty drum.
  • Operation method: The single pass rotary dryer rotates through a drum and uses gravity and lifting wings to transport materials out of the drum.
  • Stay time: The single pass dryer achieves long-term stay in the long-distance drying area through a single transfer.
  • Floor area: The single pass drum dryer has a larger volume, longer length, and a larger floor area.
  • Applicable material type: Suitable for drying different materials in various industries.
  • Investment cost: The investment cost is relatively high.

In summary, if your factory area is small and your investment budget is low, you can choose a triple pass rotary drum dryer. Other situations are suitable for considering a single pass rotary drum dryer. In addition, our company also provides drying equipment for different materials, such as cement dryers, gypsum dryers, bentonite dryers, slag dryers, river sand dryers, etc. Please feel free to send us inquiries and inquiries.
